DC POWER SUPPLY DPG Series

The DPG are 2kW-30kW DC power generators for sputtering. They are made of reliable components and circuits. These highly reliable power generators have been optimized for plasma loads with a design that reflects our many years of knowledge that includes power generator applications.

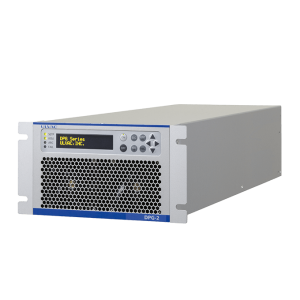

Small Capacity DC Power Supply DPG-2 /DPG -4Series

The DPG-2/DPG-4 are 2 kW/4 kW DC power generators for sputtering. Repeatability is excellent because of high control accuracy.

Features

  • High control precision
    High precision of ±1% of set value even in a low power region of below 10％.</li
  • Wide accuracy guarantee
    Guarantee the wide range power control from 1 to 100％.
  • Light-weight/space-saving
    Light-weight and space-saving design with excellent installation flexibility.
  • Requires no cooling water
    Forced air cooling, requires no cooling water.
  • High reliability
    Our accumulated knowledge as an equipment manufacturer has been reflected in the design.
Click here

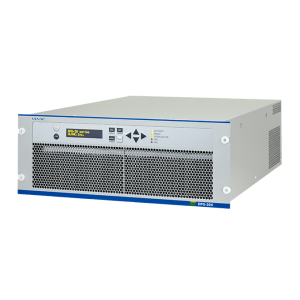

Large Capacity DC Power Supply DPG-10/DPG-20 Series

The DPG-10/DPG-20 are 10kW/20kW DC power generators for sputtering. They are made of reliable components and circuits. These highly reliable power generators have been optimized for plasma loads with a design that reflects our many years of knowledge that includes power generator applications.

Features

  • Leight-weight/ Space-saving
    Light-weight and space-saving design with excellent installation flexibility.
  • Selectable output voltage range
    We feature a lineup with 800V specifications in addition 1000V specification.
  • Extensive arc handling
    Extensive arc control methods familiar with plasma.
  • Requires no cooling water
    Forced air cooling, require cooling water.
  • Can be equipped with a high-speed arc interruption circuit
    Achieves low arc energy as standard. Can also be equipped with a high-speed arc shutoff circuit as an option.
  • Can be equipped with a flexible parallel operation function
    DPG-10, DPG-20: With the optional parallel operation function, 10kW and 20kW can be combined to allow up to 12 units to work together in parallel operation. (240kW max)
Click here

Large Capacity DC Power Supply DPG-30 Series

30 kW high impedance specification DC power supply for sputtering.

Features

  • Extremely low ark energy by utilizing an optional high-speed arc shutoff circuit.
    It contributes to high productivity and improves manufacturing yield.
  • 1200V output with high-impedance load resistance.
  • EtherCAT communication is available.
Click here
