Dry Vacuum Pump DAT Series

Home » Vacuum Component » Vacuum Pump » Diaphragm Type Dry Vacuum Pump DAT Series

dat Series

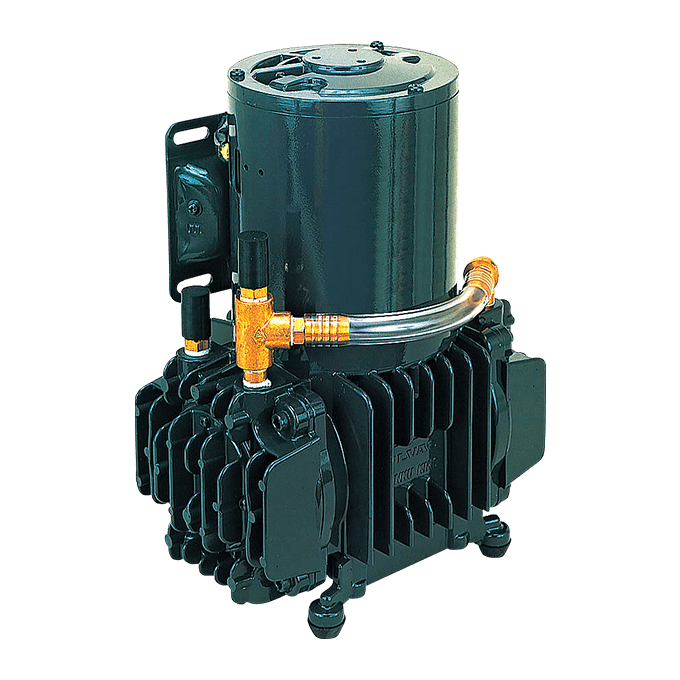

ULVAC Diaphragm type pump creates vacuum by reciprocate movement of rubber diaphragms.
Pump structure makes Oil-free environment and maintenance easy.
Various pumping speed and two/single stages are selectable depends on your required pressure
and pumping volume.

features

A standard type of dry vacuum pump with abundant results and low price.
Dry vacuum pump using no oil in the gas contact area.
Rich lineup available to suit your application.
One-stage exhaust system is faster than two-stage exhaust system.
Safety design with built-in automatic reset type thermal protector.
Operation is possible from atmospheric pressure.
Simple structure and easy maintenance.

applications

Vacuum chucks, wafer and tip handling devices.
Vacuum tweezers, medical appliances.
Printing equipment.
Automatic packing machines.
Optical appliances.
Semiconductor industry.
Injection molding machine.

specifications

	Unit	50Hz	60Hz
Actual pumping speed	L/min	100	110
Ultimate pressure^※1	Pa (kPa)	13.3×10³（-88.0）
Motor^※2		Single phase, 100V, 200W, 4P, Split phase starting
Full load current	A	5.6	5.0
Weight	kg	11.0
Inlet,outlet pipe diameter（Female）	mm	O.D.Φ12×I.D.Φ8.5 (Rc 1/4)
Ambient temperature	℃	7～40
External dimensions	mm	150(W)×232(L)×305(H)

※1：The gauge pressure display is shown in () of Ultimate pressure.
※2：Power supply plug and Power supply code are not included.

Corresponding certificate／Voltage

Model	Applicable standard^※	ＣＥ Declartion of confirmity	1Φ 100V	1Φ 115V	1Φ 200V	1Φ 220V	3Φ 200～220V
DAT-100S	－	－	●	－	○	○	－
DAT-100SA	TUV・cTUVus	●	－	－	－	－	●

●：Standard、○：Option、－：Not Applicable
※TUV Certification: A high-quality product that complies with European standards as assessed by an international third party that conducts product safety testing and certification.
※cTUVus Certification: A high quality product that complies with Canadian and US standards as assessed by an international third party that conducts product safety testing and certification.

Caution

１	The pump is stopped when the lord is operated, and the pump can’t be operated just after that. In this case, please return the atmospheric pressure the inside of the pump.
２	The pump will not often operate normally if it is used with corrosive gases, organic solvents, liquids, or condensed gases (eg steam). The pump will not often operate normally if it is used with gases containing particles or dust etc.
３	A large current flows when the pump starts. If ON/OFF of the pump power supply will be frequently done in a short time, trouble might be caused. Please do not turn a frequent power supply on and off in a short time.
４	It is a pump only in the room. Please do not set it up in the place, that rain and water splash, and outdoors.
